3G Series Triple Screw Pump & Fuel Transfer Pump

Product Details

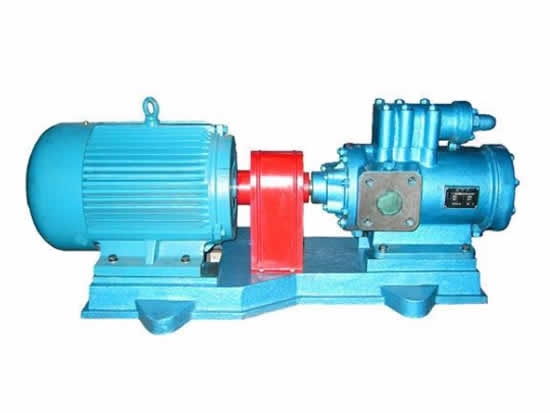

3G Series Triple Screw Pump & Fuel Transfer Pump
Three Screw Pump,Diesel transfer pump, 3-Screw Pump, Triple Screw Pump for Fuel Transfer, Oil Pump, Screw Oil Transfer Pump, Fuel Injection Pump

Technical Parameters of Triple Screw Pump saiken brand
Model: 20X4-3GS100X2
Flow rate: 0.2 m3/h-590 m3/h
Discharge pressure: 0.6Mpa-6Mpa
Rotational speed: 970r/min-2900r/min
Net positive suction head: 3.5m-6m

Description of Diesel Transfer Pump
In the triple screw pump, the driving screw and driven screw have an ideal mesh and produce several vacuum chambers in the fuel transfer pump. These chambers keep pumping liquids from inlet to outlet and raise the liquid pressure during the pump process. By doing so, the liquid is transferred in a continuous, stable and axle-moving manner. This diesel transfer pump has a flow rate range of 0.2-590m/h, maximum working pressure of 100bar and highest working temperature of 150 ℃.

Application of Diesel Transfer Pump
This screw type oil transfer pump is applicable for transferring media that are non-corrosive, lubricant, contain no particles, and have a temperature lower than 150 ℃ and a viscosity of 3-760 cSt.
Most applied fields are fuel oil, hydraulic engineering, heavy-duty machinery, shipping, offshore engineering, printing, chemical engineering and petroleum.

Main Features of Triple Screw Pump

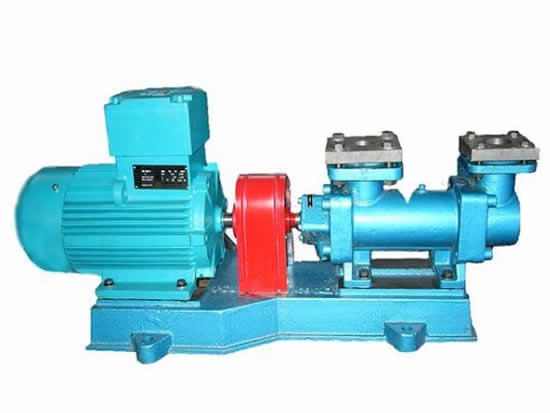

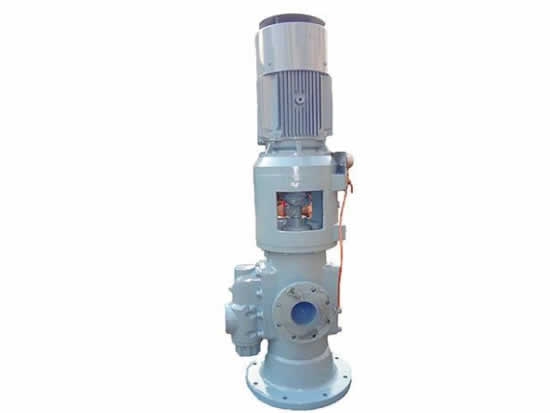

1. Compact structure. We manufacture various models of triple screw pumps which generally are divided into three categories. The small flow type has a flow rate of 0.2-6.5 m/h, combining pump body and bushing into one part and adopting mechanical sealing. For medium flow type, an independent part is fixed in the pump to function as an integration of pump body and bushing. As for large flow pump, this kind of pump is often designed into double-suction structure and horizontal installation. Two sealing methods are offered: mechanical sealing and packing sealing. In addition, the fuel transfer pump for marine use provides two ways to install, horizontal and vertical method. The motors have AC and DC type for customers to choose.
2. Long lifespan. In the triple screw pump by Life company, the driving screw is driven by motor while the driven screw is actuated by transferred liquid. Therefore, there is no direct contact between driving and driven screws, avoiding damages caused by abrasion. In addition to this, a lubricant film is easily formed between each part since the transferred media most often are oil. Thus, low mechanical friction and long service life are realized.
3. High stability. The uniform linear motion of liquid inside pump provides a high guarantee on low pressure fluctuation, stable flow, low noise, low inertia, little vibration and low starting torque.
4. Excellent suction ability, time saving and highly efficient.
5. Secure safety. For medium and large flow pumps, a protective valve is installed allowing for the security of motor and pipeline. When pressure exceeds the set one, high-pressure oil will go back to tank.

Some Components of Triple Screw Pump
Both driving shaft and driven shaft have been quenching, rough turning, finish turning, tempering, nitriding and more. That’s why they are long lasting and good condition.
After being finish casted, the pump body, valve and cover are processed by advanced machinery, extremely reliable and stable.
The finish processed valve core enjoys fine quality and high precision.

More Data of Triple Screw Pump：

Model Discharge pressure MPa Flow rate Rotational speed r/min NPSH /m Efficiency/ % Motor

m3/h L/min Power /KW Model

20X4 1.0 2.5 0.4 0.3 0.6 5.0 1450 3.5 37.4 41.7 0.55 0.75 801-4B5 802-4B5

1.0 2.5 1.0 0.8 16.6 13.3 2900 4 40.8 50.5 0.75 1.5 801-2B5 90S-2B5

20X6 4 6 0.3 0.2 5.0 3.3 1450 3.5 41.7 24.7 1.1 1.5 90S-4B5 90L-4B5

4 6 0.8 0.6 13.3 10 2900 4 52.3 37.4 2.2 3.0 90L-2B5 100L-2B5

25X4-46 1.0 2.5 0.8 0.6 13 10 1450 4 62 60.6 0.75 1.5 Y802-4 Y90L-4

1.0 2.5 2.0 1.6 33 26 2900 4.5 59.4 69 1.5 3 Y90S-2 Y100L-2

25X6-46 4 6 0.6 0.4 10 6.6 1450 3.5 42 32 2.2 3 Y100L1-4 Y100L2-4

4 6 1.6 1.4 26 23 2900 4 52 47 4 5.5 Y112M-2 Y132S1-2

30X4-46 1.0 2.5 1.6 1.2 26 20 1450 4.5 63.5 61 1.1 2.2 Y90S-4 Y100L1-4

1.0 2.5 3.6 3.2 60 53 2900 5 60 69 2.2 4 Y90L-2 Y112M-2

36X4-46 1.0 2.5 2.8 2.4 46 40 1450 4.5 66 66.5 2.2 4 Y100L1-4 Y112M-4

1.0 2.5 6.5 6 108 100 2900 5 60.5 72 4 7.5 Y112M-2 Y132S2-2

36X6A-46 4.0 6.0 6 5 100 83 2900 5.5 67 54 15 18.5 Y160M-2 Y160L-2

4.0 6.0 2.4 2 40 33 1450 5 56 43 5.5 11 Y132S-4 Y160M-4

42X4A 1.0 2.5 4.8 4.2 80 70 1450 5 55.6 62.1 4 5.5 112M-4B3 132S-4B3

1.0 2.5 10.5 10 175 166 2900 5.5 59.5 73.1 5.5 15 132S-2B3 160M2-2B3

42X6A 4 6 4.2 3.6 70 60 1450 5 62.2 60 11 15 160M-4B3 160L-4B3

4 6 10 9 166 150 2900 5.5 69.4 69.8 18.5 30 160L-2B3 200L1-2B3

Model Discharge pressure/ MPa Flow rate Rotational speed r/min NPSH/ m Efficiency/ % Motor

m3/h L/min Power/ KW Model

45X4-46 1.0 2.5 6.3 5.9 106 99 1450 5 70 74 3 7.5 Y100L2-4 Y132M-4

1.0 2.5 13.5 13 225 217 2900 5.5 60 75 7.5 15 Y132S2-2 Y160M2-2

50X2 0.6 1.0 8.2 7.5 136 125 1450 5 52.6 52.1 3 5.5 100L2-4B3 132S-4B3

0.6 1.0 17.5 16 297 266 2900 5.5 56.1 54.9 5.5 11 132S1-2B3 160M1-2B3

50X4A 1.6 2.5 8.2 7.5 136 125 1450 5 62.8 63.5 7.5 11 132M-4B3 160M-4B3

1.6 2.5 17.5 16 291 266 2900 5.5 67 67.3 15 18.5 160M-2B3 160L-2B3

60X4-46 1.0 2.5 15.5 14.5 255 245 1450 5 71.3 74 11 15 Y160M-4 Y160L-4

1.0 2.5 32 31.5 533 525 2900 5.5 63 77 18.5 37 Y160L-2 Y200L2-2

70X2-46 0.6 1.0 1.6 24 23.5 22.5 400 290 370 1450 5 71 75 16 7.5 11 15 Y132M-4 Y160M-4 Y160L-4

70X4-46 1.0 2.5 24.5 23.5 408 392 1450 5 72.5 79 18.5 30 Y180M-4 Y200L-4

80X2-46 0.6 1.0 1.6 36.5 35 34.5 608 594 575 1450 5 72 75.5 76.5 11 18.5 22 Y160M-4 Y180M-4 Y180L-4

80X4-46 1.0 2.5 37 35 617 590 1450 5.5 72 78.1 30 45 Y200L-4 Y225M-4

85X2 0.6 1.0 28 25 466 416 970 5 59.4 69.4 11 15 160L-6B3 180L-6B3

0.6 1.0 43 40 716 666 1450 5.5 57.3 61.7 15 22 160L-4B3 180L-4B3

85X4 1.6 2.5 28 25 466 416 970 5 63.8 68.4 22 30 200L2-6B3 225M-6B3

1.6 2.5 43 40 716 666 1450 5.5 76.4 77.2 30 45 200L-4B3 225L-4B3

100X2-46 0.6 1.0 1.6 72.5 71 60.5 1208 1183 1158 1450 5 73 77 79 22 37 45 Y180L-4 Y255S-4 Y225M-4

100X4-46 1.0 2.5 72.5 70 1208 1165 1450 5.5 73 78.5 55 75 Y250M-4 Y280S-4

Model Discharge pressure MPa Flow rate Rotational speed r/min NPSH/m Efficiency/% Motor

m3/h L/min Power/ KW Model

100X2-46 0.6 1.0 94 90 1566 1500 1450 5.5 73 77 30 45 Y200L-4 Y225M-4

110X4-46 1.6 2.5 94 90 1566 1500 1450 5.5 73 78 75 90 Y280S-4 Y280M-4

S100X3 0.6 1.0 1.6 72 70 69 1196 1160 1145 1450 6 62 72 74 22 55 75 Y180L-4 Y250M-4 Y280S-4

S120X3 0.8 1.5 2.5 123 120 115 2055 2010 1920 1450 6 74.5 76 78.5 55 90 132 Y250M-4 Y280M-4 Y315M-4

3GS160DX3 0.6 1.0 1.6 194 186 180 3230 3096 2997 970 6 67.4 78.3 81.6 55 75 110 280M-6B3 315S-6B3 315L1-6B3

0.6 1.0 1.6 300 292 280 5000 4866 4662 1450 6 73.5 77.5 77.8 75 110 200 280S-4B3 315S-4B3 355S2-4B3

3GS200DX3 0.6 1.0 1.6 380 370 360 6327 6160 5994 970 6 70.4 76.1 74.4 110 160 315L1-6B3 355S2-6B3

0.6 1.0 1.6 590 570 550 9823 9490 9157 1450 6 72.8 79.2 76.4 160 250 315L1-4B3 355S4-4B3

3GS100X2 0.6 1.0 1.6 90 86 80 1500 1433 1333 970 6 57.7 73.5 82.7 30 37 55 225M-6B3 255M-6B3 280M-6B3

0.6 1.0 1.6 146 140 132 2433 2333 2200 1450 6 69.5 77.8 73.3 45 55 90 225M-4B3 250M-4B3 280M-4B3
