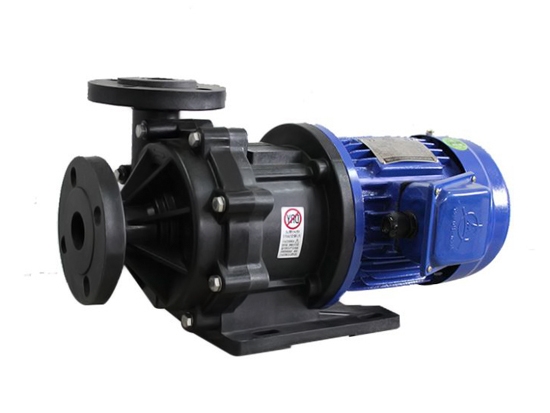

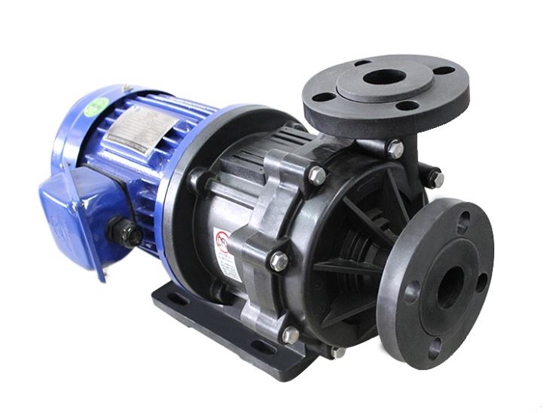

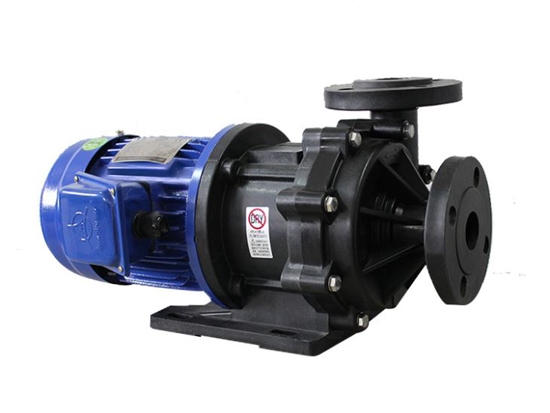

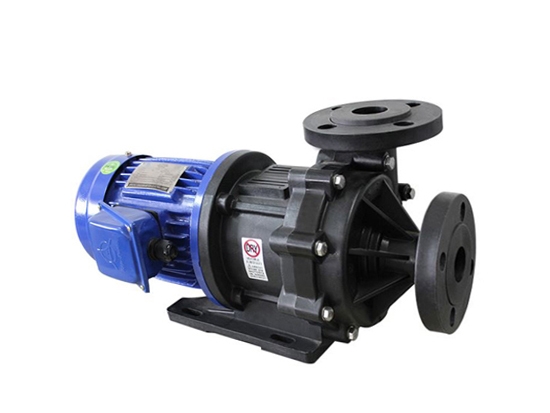

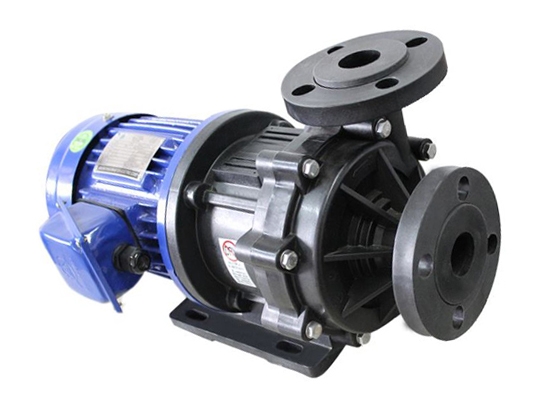

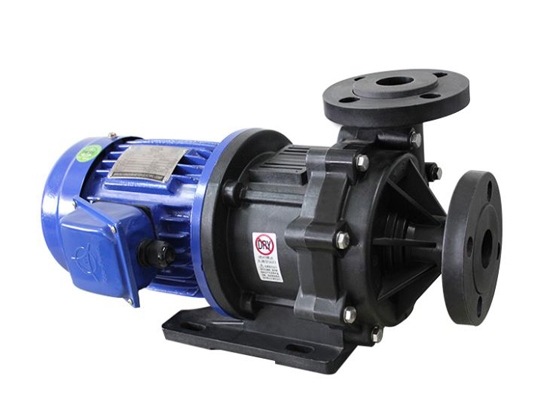

CFRETFE Plastic Magnetic Dirve Pump
CFRETFE Plastic Magnetic drive pump adopts the brand-new probe tip contact system technology and the material resistant to idle running so that it’s better in idle running resistance and reliability. The motor power is 0.4kw-3.7kw, which can meet needs for medium-flow anti-corrosive pumps.
The pump are able to transport different kinds of acid and alkali chemical liquids. Widely used in chemical industry, medicine, construction, Environmental protect, irrigation works, power industry,Petroleum, fire control, food, printing, and color Photofinishing, etc.
The Plastic Magnetic drive pump has a compact structure and 100% leakproof,which is widely applied in various industries and spoken highly of by users for its corrosion resistance and durability.Mainly adopting such materials as GFRPP and PVDF,it’s available for transporting many kinds of corrosive liquids.Due to its compact structure, very applicable for liquid circulation in photo developing,electroplating equipment and PCB equipment.
The series pump’s maximum flow is up to 220L/min from 5L/min .With such options as hose and thread connections,it’s applicable for transporting acid and alkali liquids.Different impellers can be selected,subject to specific gracity of liquids, to transport many kinds of liquids with high specific gravity without overload.
The series magnetic pump is driven by a pair of magnets connected on impeller and motor shaft.Unlike the traditional centrifugal pump,it’s glandless for its structure.Its chamber is separated by the rear casing.Its motor is provided with active magnetic roation.The active and passive magnetic coupling torque drives the impeller to rotate,thus achieving the liquid transportation.
The series pump is one of the best magnetic drive pumps in simplicity,firmness and durability.
The motor is solid TEFC construction and is painted with 2 parts epoxy paint.
The series pumps incorporates ceramic shaft and dual trust bearings to give smoother running and increased durability compared to other pumps in it’s class.
The pumps are seal-less and are available in CFRETFE,FRPP,PVDF,CFRPP.
The pumps are available with VITON,NBR or EPDM gaskets.
The pumps have no metallic parts in contact with the solution being pumped.
