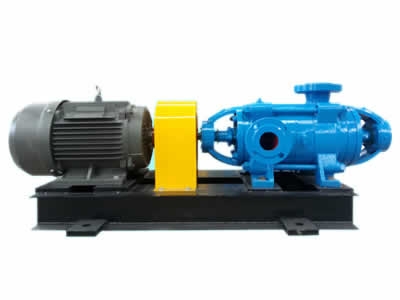

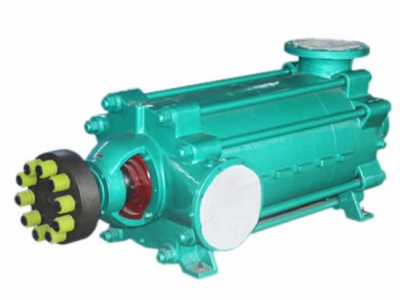

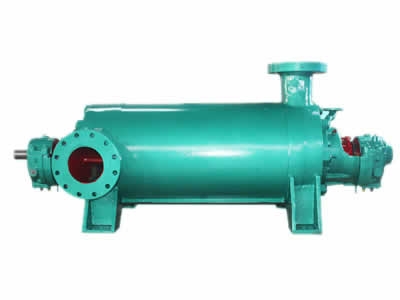

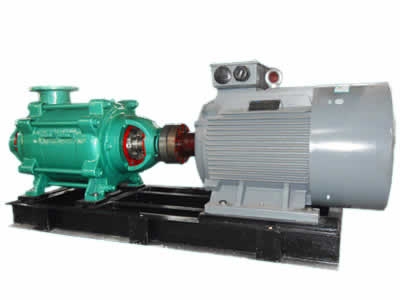

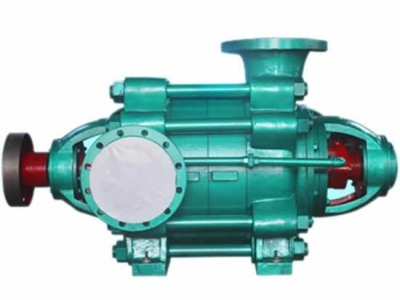

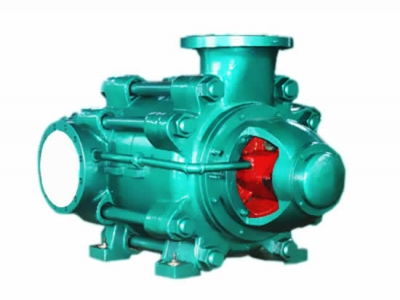

MD12-25*(3-12) Horizontal Multistage Centrifugal Pump

Multistage Pump Type: D / MD / DY / DF / DG series
Range of Inlet/Outlet Dia.: 2-12inch(50-300mm)
Range of Flow Rate:3.75- 850m3/h
Range of Head:19- 816m
Max. Pump Stage:14 stages
Range of Temperature Liquid:-20℃-150℃
Rotation Speed:1480/1750/2950/3500rpm
Seal Type: Mechanical seal or Packing seal

Products

Product Details
Introduction to MD12-25 Horizontal Multistage Centrifugal Pump

This product belongs to the MD type horizontal multi-stage pump. It is a single-suction multi-stage segmented centrifugal pump for transporting clean water and liquids with physical and chemical properties similar to water. The MD type multi-stage pump has the advantages of high wear resistance, high efficiency and maintenance. Convenient, high suction range, suitable for steel plants, mine drainage, sewage transportation and other occasions. 64 of our multi-stage pump products have passed the coal safety and mining safety certification.

D, DF,MD multi-stage mining pump adopts high-efficiency energy-saving hydraulic model, the pump mostly uses wear-resistant materials such as ductile iron. It is used to transport neutral mine water and other similar media with solid particles ≤0.5mm, content ≤10%, temperature ≤80℃.
D. DF,MD multi-stage mining pump adopts high-quality balanced disc-ring system to balance the axial force. The system has strong wear resistance and does not need to be replaced under normal conditions of 5000 hours of operation. The pump adopts wear-resistant materials, the service life of the pump body is more than 10 years, and the normal service life of rotor parts such as impeller is more than 5000 hours. At present, the company produces this series of pumps with a flow rate of ≤1200m³/h and a head of ≤1500m.

Horizontal Multistage Centrifugal Pump Technical Parameters:
Range of Inlet/Outlet Dia.
2-12inch(50-300mm)
Range of Flow Rate
3.75- 850m3/h
Range of Head
19- 816m
Max. Pump Stage
14 stages
Range of Temperature Liquid
-20℃-150℃
Rotation Speed
1480/1750/2950/3500rpm
Seal Type
Mechanical seal or Packing seal
Multistage Pump Type
D / MD / DY / DF / DG series


Horizontal Multistage Centrifugal Pump
classification according to different applications:

Type

D series

MD series

DY series

DF series

DG series

Medium

Clean water

Sewage

Oil

Corrosive liquid

Hot water

Liquid
Temperature

≤80℃

20℃-80℃

-20℃-105℃

-20℃-105℃

-20℃-150℃

Max. Particle Dia.

0

0.5mm

0

0

0

Viscosity

0

0

120cst

0

0

Suction/Discharge
Direction
