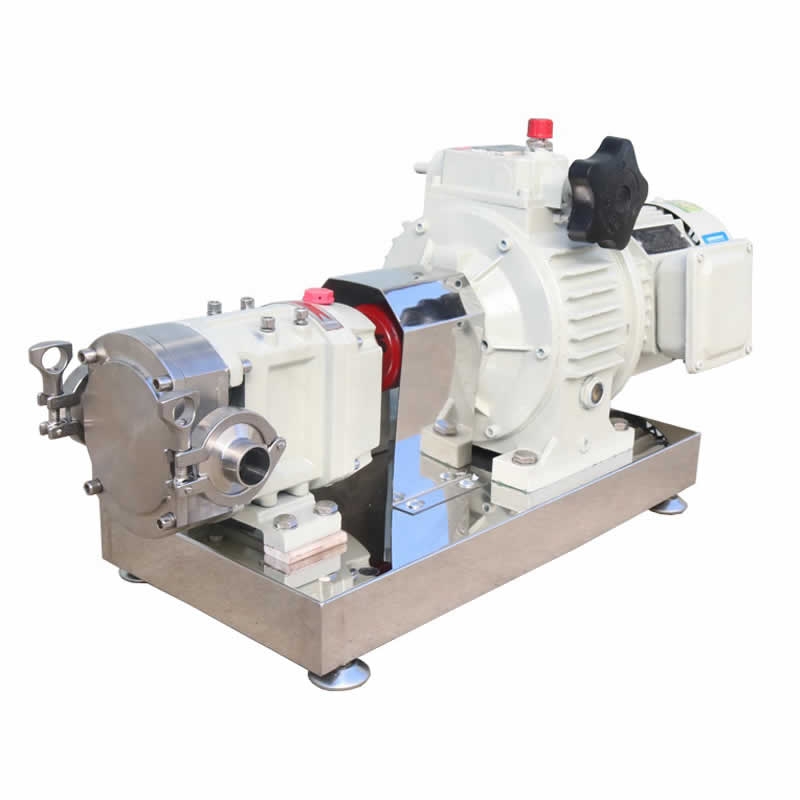

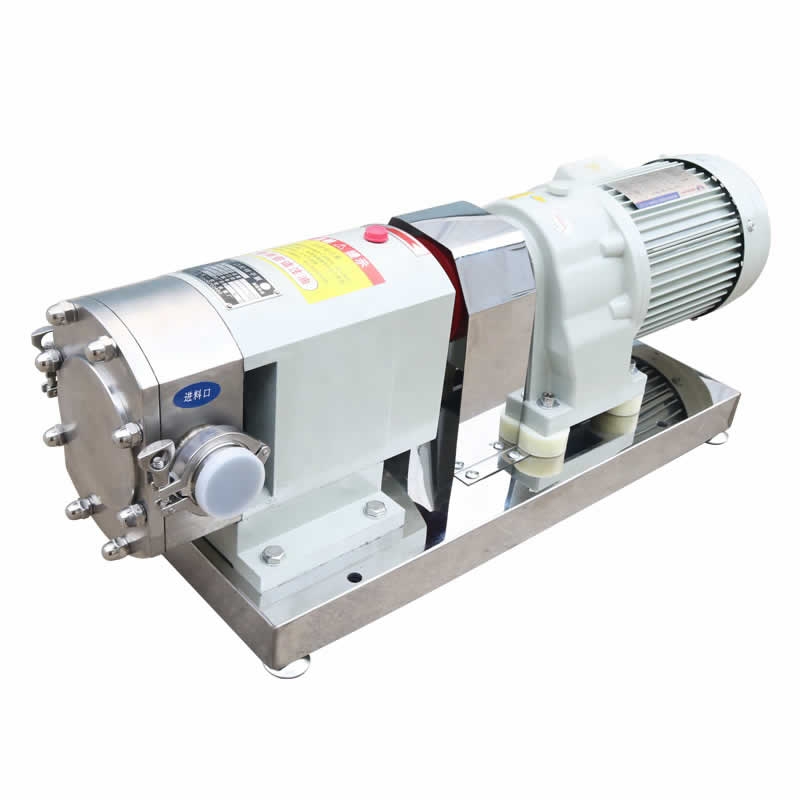

SUS304 316L Lobe pump for chocolate

Flow Rate Up to 60M³H
Max Head (pressure) Up to 10 Bar
Sizes: 25mm- 125mm Outlet
Max Temperature:250°C
Material: stainless steel 304/316L

Products

Product Details
Rotary Lobe Pump is a positive displacement pump with two rotors in the pump head. The two rotors are fixed to the two shafts and rotate synchronously in the opposite direction. The rotation creates a vacuum volume on the inlet side. The liquid is drawn into the pump head and travels in the chamber between the rotor and the pump head housing and is extruded on the outlet side. The pump has a wide range of viscosity suitability. It has the characteristics of low speed, high efficiency, stable operation, strong self-priming ability, convenient pump operation and preheating. The pump features a multi-style seal for reliable performance and long life. It is an ideal conveying equipment for food, pharmaceutical, chemical, oil, daily life and so on.
Product Name: LP Series Hygienic Lobe Pumps
Material Science: SS304 / SS316L
sealing material: EPDM (Standard, FDA Approval)
Maximum flow: 2~1110GPM
Maximum pressure: 4~10bar
Maximum permissible fluid temperature: 100°C(212°F)/ 200°C(392°F) -water-cooling
Specification of power supply: 110V,220V,240V,380V,400V,415V,440V 50hz / 60hz
Connection type: Fast clamping, flange, thread, SMS, barb, square port
Motor power: 1~30kw
Entry/Exit location: Horizontal or vertical
Maximum viscosity: 1×1000000CST
Optional criteria: DIN,SMS,3A,RJT,ISO / IDF
Scope of application: Dairy products, food, beverages, pharmacies, cosmetics, etc.
Maximum diameter: 1"/1.2"/1.5"/2"/2.5"/3"/4"/6"
Rotor type: Single leaf, double leaf, three leaf, four leaf, axe head, spiral
Sealing material: EPDM (standard, FDA approved)
Sealing options: PTFE/hygienic single mechanical seal / double mechanical seal with cooling system
Packaging details: Plywood box or custom. Or according to customer requirements

Product advantages:

Hygienic standard: All parts in contact with the medium (material) are made of stainless steel (SUS304, AISL316, 316L), in line with hygienic standards.

Working efficiency: up to 90%

medium transmission: it can transport high viscosity medium up to 1.5 million CPS, AS AS AS sensitive medium, containing solid soft particle media, up to 60%.

Reversible operation: using the pump's symmetrical structure, reversible conveying direction, forward suction, reverse flushing.

Seal: Provides many types of sealing options, Optional double-sided mechanical seal design, suitable for dry running.

Positioning structure: unique rotor installation design, accurate positioning, easy

maintenance . Maintenance: compact structure, small footprint, no need to move the pipeline system during maintenance.

Wear-resistant: all contacts The parts are made of stainless steel with almost no wearing parts.

Low speed operation: low working speed, a certain gap between the rotor and the rotor and the pump body , no friction, low noise, long service life.

Low cost: high work efficiency, Low consumption, environmental protection, less maintenance and long life.

Product classification:

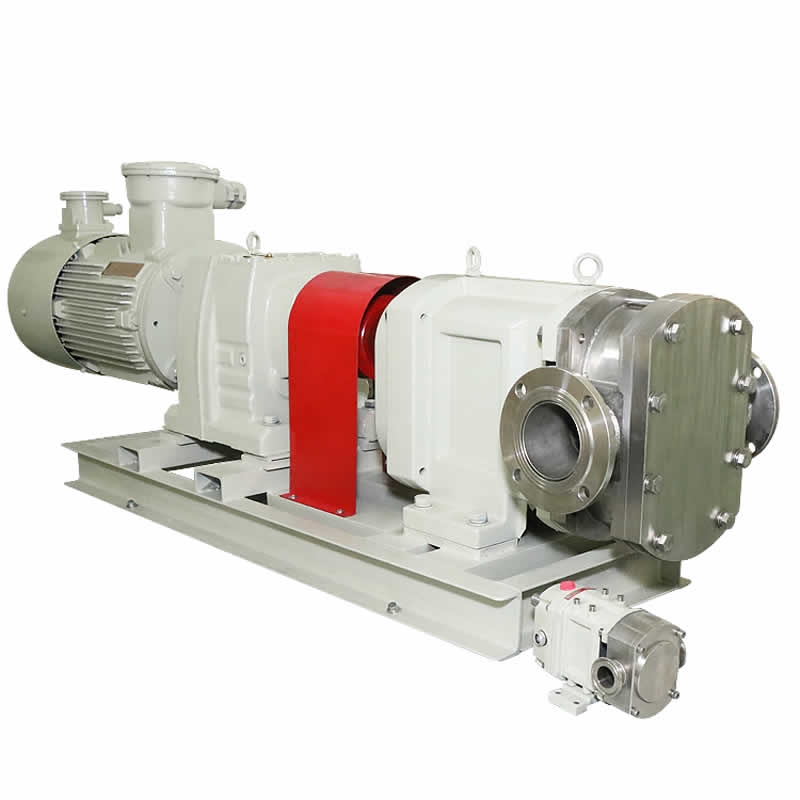

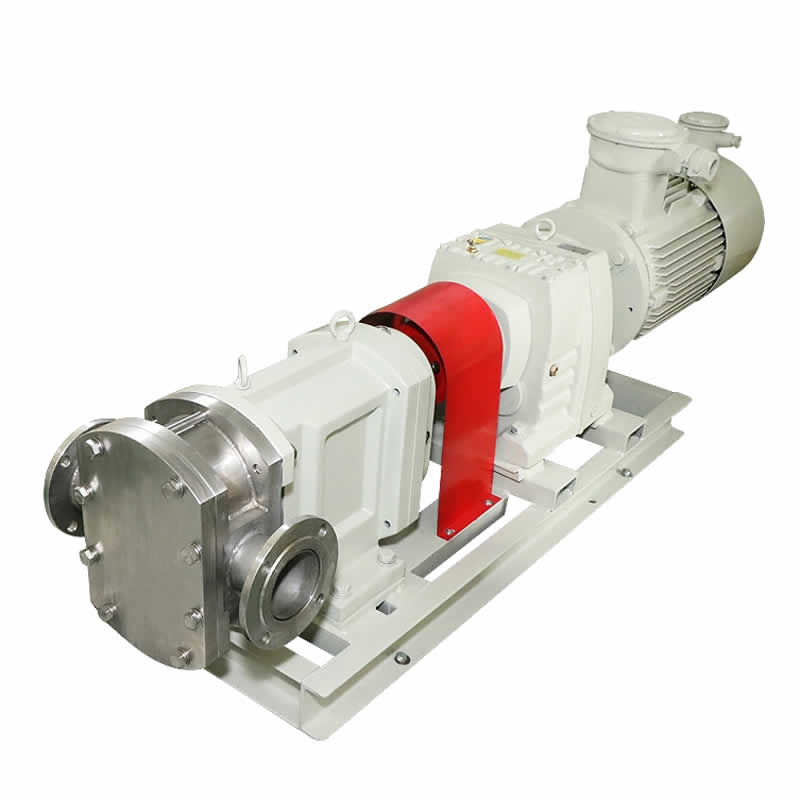

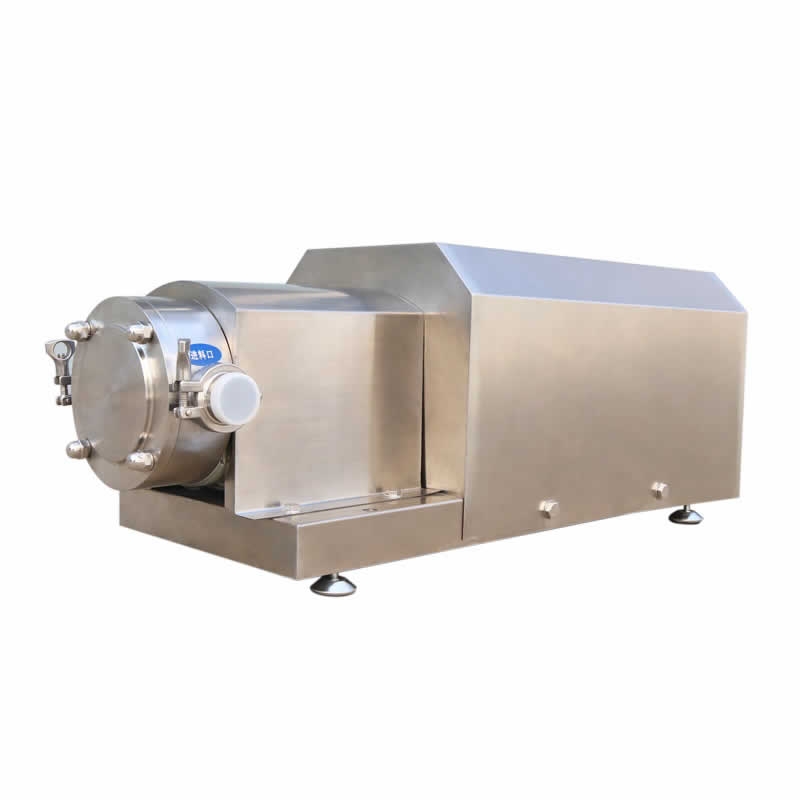

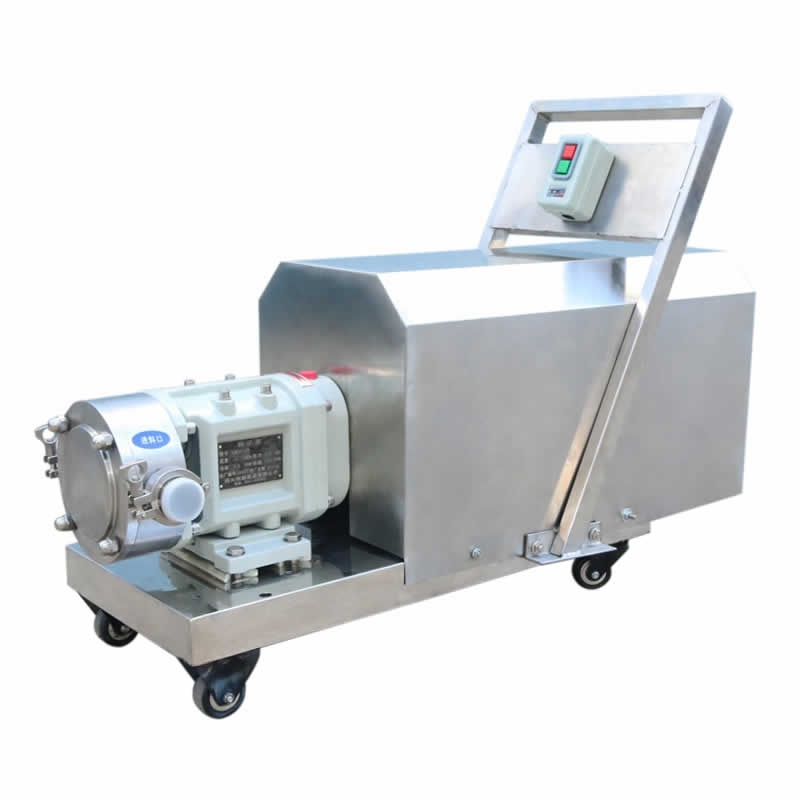

LP series sanitary rotor pump has various conveying modes and driving forms. It can be changed according to customer requirements and can be divided into, for example, fixed speed, stepless speed regulation, variable frequency speed regulation, servo drive type and explosion proof type. According to the requirements of customer transportation methods and hygiene requirements, the categories are divided into horizontal conveyor type, vertical conveyor type, mobile type and sanitary type.


structure:

The unique design structure ensures product performance and durability.

1 ,seal diversity choice, you can choose Teflon seal, or single and double mechanical seal.

2 ,rotor and pump body are made of 304/316L food grade material.

3 ,unique and rotor Mounted Design, Precise Positioning, the Easy to Overhaul.

4, Stainless Steel Double Bolts are Fixed, More stable and the Easy to Assemble and disassemble.

5, Heavy Duty the Tapered Ball bearings

6, Synchronous Gears CAN BE the Selected from Straight teeth and helical Gears. at The Gears have high hardness, smoother torque rotation and low noise operation.

7 ,can provide multi-directional installation.

Application field:

Household Chemicals: the SOAP, the SOAP, Toothpaste, Glycerin

Fine Cleaning Chemicals: Fuels, Pigments, Additives, Adhesives

Chemical Fiber: Polyester Fiber, Rayon, Polypropylene Fiber.

Papermaking: Starch Paste, slurry, DEFOAMER.

Coatings: Paints, Inks, Resins.

Food : chocolate, syrup, cream, mayonnaise, jam.

Cosmetics: creams and lotions, hair gels, essential oils.

Pharmaceutical: pills, syrup, extracts, emulsions, pharmaceutical pastes

Performance overview:

Model
DISPLACEMET
LITER/REV
NOMLNAL
LONNECTION
         SIZE
DIFFERENTIAL
PRESSURE RATING
BAR
MAXIMUM
PUMP SPEED
RPM
INPUT SHAFT
DIAMETER
(MM)
MAXIMUM
TORQUE
N-M
LP-6
0.06
25(1")
10
960
19
108
LP-9 0.09
32(1.2")
10
960 19
108
LP-18
0.18
40(1.5")
10
960
21
166
LP-36
0.36
50(2")
10
720
28
244
LP-60
0.6
65(2.5")
10
720
38
444
LP-135
1.35
80(3")
10
600
48
832
LP-250
2.5
100(4")
10
600
60
1665
LP-535
5.35
150(6")
10
400
75
2800
LP-700
7
150(6")
10
400
75
3200
