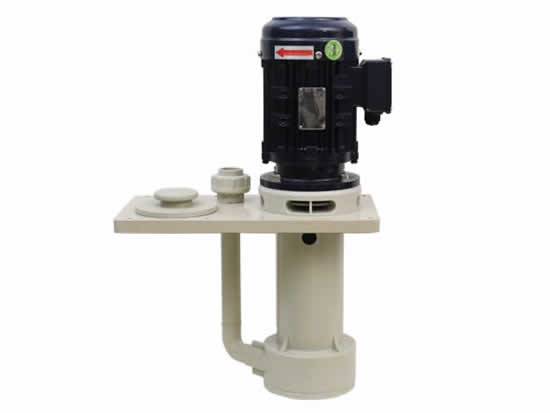

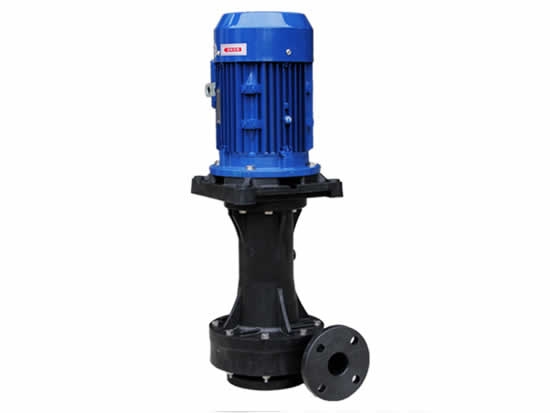

Vertical Plastic Immersion Pumps
750W – 15 KW (1 – 20 HP)
FOR AGGRESSIVE AND NEUTRAL LIQUIDS

1. The Vertical Plastic Immersion Pumps have a pump housing and impeller which are made entirely of plastic and are fitted as standard with a pre-strainer and an one-piece drive shaft. The pump housings have been designed in such a way that a liquid seal is created in the pump housing. As a result there is no need for a mechanical seal and no frictional heat is caused. This means the pump will never run dry nor break down if the pump runs without liquid being pumped. The suction tube can be extended on request. All this together makes the pump suitable for pumping round process liquids and for the complete pumping out of the process tank.
Provide the highest resistance to corrosion and wear, such as polypropylene, polyethylene, GFRPP and PVDF.
prepared to work under the most demanding conditions in sectors such as environmental matters, surface treatment, chemical plants, and metallurgy.

2. Model Indication:
DT- 50- VK- 5- 6- V- F
① ② ③ ④ ⑤ ⑥ ⑦

	Product Name	PP Plastic Vertical Pump
1.	Type No.	DT
2.	Caliber	40-1-1/2" 50-2" 65-2-1/2" 80-3" 100-4“
3.	Proportion	VK-1.1 VP-1.4
4.	Horse power	3-3HP 5-5HP 7.5-7.5HP 10-10HP 15-15HP
5.	Frequency	5-50HZ 6-60HZ
6.	O Ring material	V-VITON (FKM) E-EPDM N-NBR
7.	Pump material	F-FRPP K-PVDF

3. specification：

Model	Curve	Size (mm)	Power(HP)	Flow(LPM)	Head(m)	Total Flow (m)	Total Head (m)	Weight （Kg）
Model	50/60hz	Inlet/outlet	Power(HP)	50/60hz	50hz/60hz	50/60hz	50/60hz	Weight （Kg）
DT-40VK-1	a / A	50/40	1	175/120	6/8	250/200	11/12	29
DT-40VK-2	b / B	50/40	2	190/300	12/10	300/370	16/21	38
DT-40VK-3	c / C	50/40	3	270/350	12/14	375/480	20/20	41
DT-50VK-3	d / D	65/50	3	330/300	12/15	460/500	20/22	41
DT-50VK-5	e / E	65/50	5	470/550	14/15	650/710	24/29	55
DT-65VK-5	f / F	80/65	5	500/650	14/15	680/800	24/29	55
DT-65VK-7.5	g / G	80/65	7.5	590/780	16/18	900/930	26/36	95
DT-65VK-10	h / H	80/65	10	590/890	18/20	950/1050	28/39	106
DT-100VK-15	i / I	100/100	15	1000/1200	27/25.5	1760/1760	39/44	155
DT-50VK-3	j / J	65/50	3	290/300	12/12	350/430	20/19	41
DT-50VK-5	k / K	65/50	5	400/430	14/15	470/490	23/27	55
DT-65VK-7.5	m / M	80/65	7.5	450/600	18/16	785/790	26/29	95
DT-65VK-10	n / N	80/65	10	570/800	18/18	950/950	26/37	106
DT-100VK-10	q / Q	100/100	10	800/950	20/20	800/950	25/31	106
DT-100VK-15	o / O	100/100	15	800/1000	29/29	1680/1730	38/43	155
