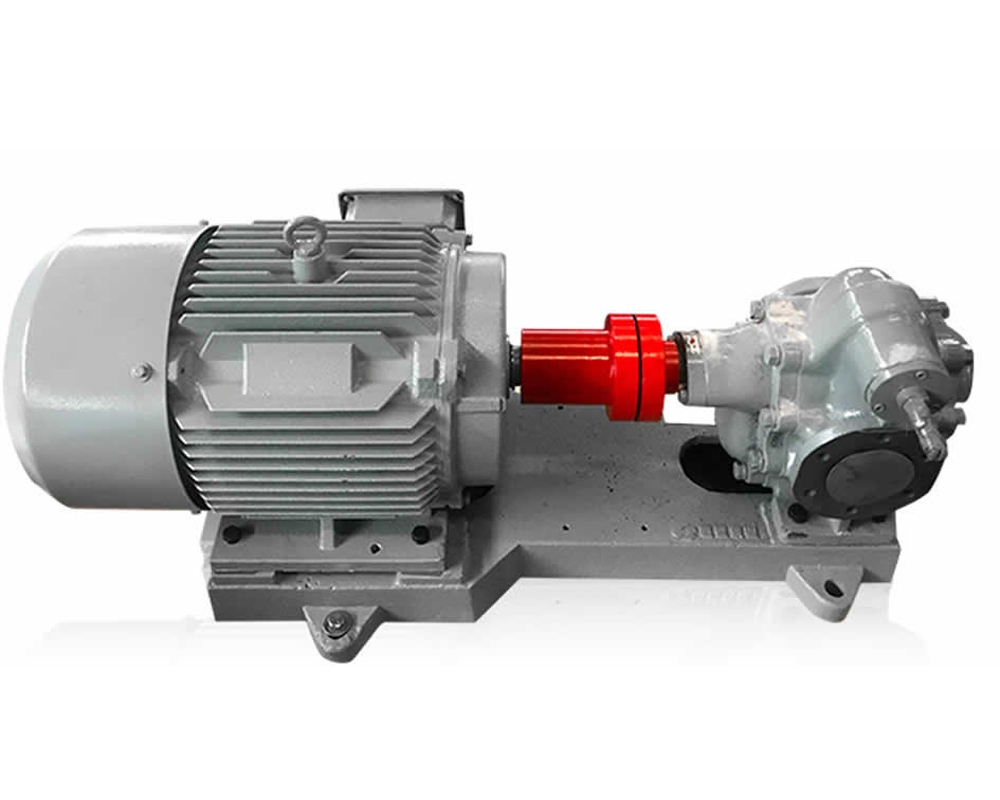

KCB Gear Pump & oil transfer pump
The KCB Gear Pump is a higher flow, Low pressure
external gear pump. Designed for the transfer of lubricating fluids with varying viscosities up to 1500cSt, the KCB is therefore designed for handling larger volumes of fuels and oils.
The self-priming nature of the gear pump design makes it ideal for applications with difficult suction conditions, for example where the fluid needs to be pumped over a long distance or when the pump is situated above the fluid.
Pump material can be cast iron, carbon steel, stainless steel
Being long coupled, these KCB helical gear pumps are easier to maintain as you can get to the pump head without removing the motor first, and are also more durable for continuous use as it has additional bearings in the pump head to share the strain of operation.
Features of the KCB Gear Pump:
Long coupled, self-priming helical gear pump
Smooth, pulseless flow
Additional bearings in pump head to share the strain of operation
Inline ports, supplied flanged as standard
Pressure differential safety valve – 1.5 times the rated pressure
Gland packing or mechanical seal
Suitable for lube and fuel oils between 5-1500cSt
230v, 380V,440V three phase 50Hz/60Hz motors available. IP55 as standard

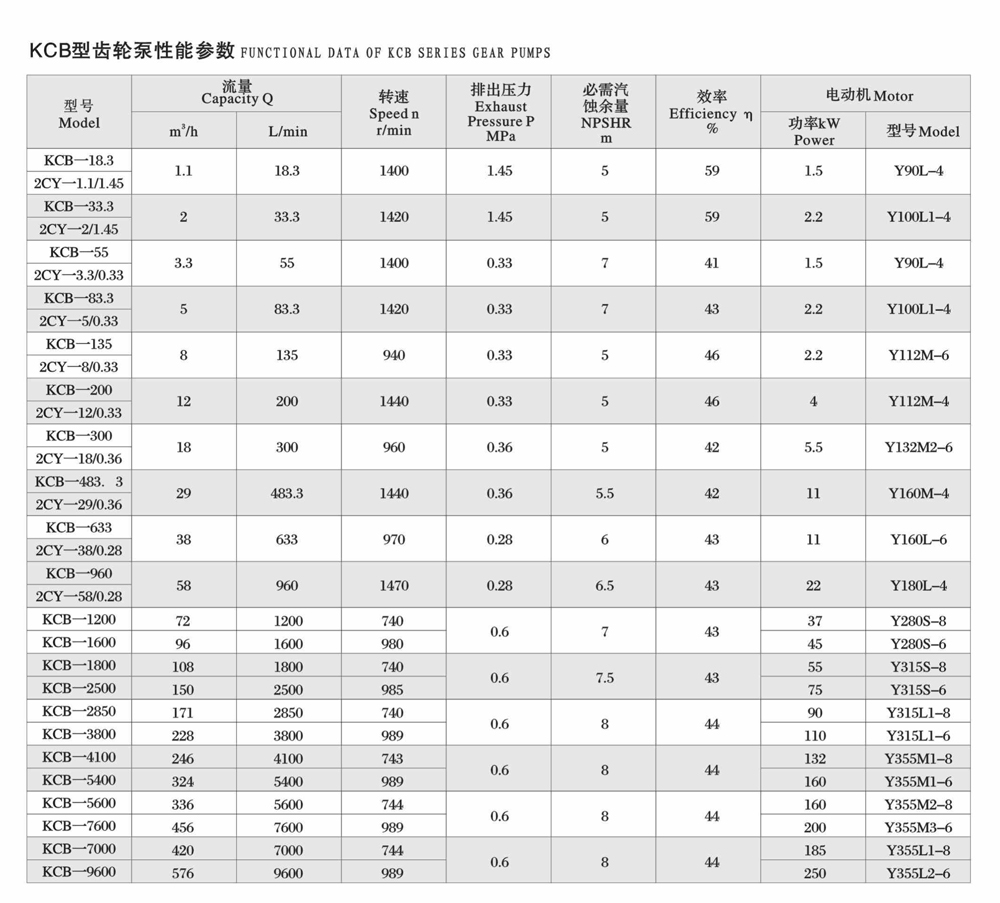

Performance Data:
