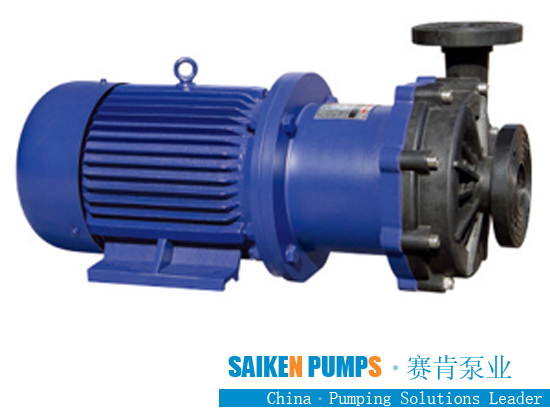

Fluoroplastic magnetic pump is an acid and alkali resistant pump Fluoroplastic magnetic pump is a chemical process pump that applies modern magnetism principles and uses permanent magnets to achieve non-contact indirect transmission. When the motor drives the outer rotor (ie, outer magnetic steel) assembly to rotate, the magnetic field lines pass through the isolation sleeve to drive the inner rotor (ie, inner magnet) assembly and the impeller to rotate synchronously, and the medium is completely enclosed in the stationary isolation sleeve. , So as to achieve the purpose of pumping the medium without leakage, and completely solve the leakage of the shaft seal of the mechanical transmission pump. It is a completely sealed, leak-free and pollution-free new industrial pump. Fluoroplastic magnetic pump is an ideal pump for preventing running, emitting, dripping and leakage in the chemical process, eliminating environmental pollution, creating "leak-free workshop" and "leak-free factory", and realizing safe and civilized production.
Precautions for use:
1. If the conveyed medium contains solid particles, a filter should be added to the pump inlet: if it contains ferromagnetic particles, a magnetic filter should be added.
2. The medium to be transported and its temperature should be within the allowable range of the pump material (see the attached table for details). The use temperature of plastic pump is <100℃, the use temperature of metal pump is <180℃, the suction pressure is not more than 0.2mpa, the maximum working pressure is 1.6mpa, the density is not more than 1600kg/m3, and the particle size is not more than 30×10-6m2/s Liquid without hard particles and fibers.
3. Because the cooling and lubrication of the magnetic pump bearing depends on the conveyed medium, idling rotation is absolutely forbidden, and at the same time, avoiding idling operation caused by restarting after a power failure in the middle of work.
4. For the medium that is easy to precipitate and crystallize, the conveying liquid should be cleaned in time after use to drain the liquid accumulation in the pump.
5. In the operation of the magnetic pump, the wear of the bearing and the end face moving ring should be disassembled and checked regularly. If the gap between the bearing and the shaft sleeve is greater than 0.5~1mm and the impeller moves 1.5~2mm in the axial direction, the bearing and the axial moving ring should be replaced.
The main purpose:
Fluoroplastic magnetic pumps are widely used in: petrochemical, acid-making alkali, non-ferrous metal smelting, pickling process of automobile manufacturing, rare earth separation, pesticides, dyes, medicine, papermaking, electroplating, radio and other industries.
