Product Details

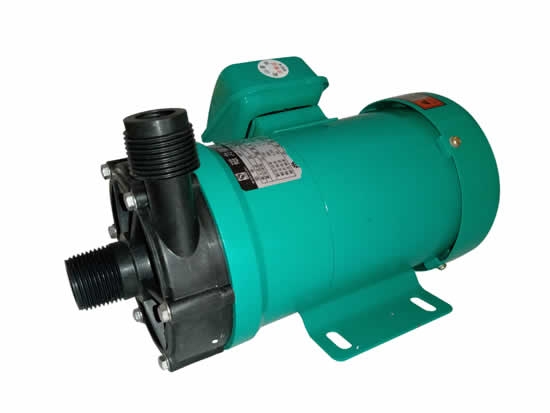

Max. discharge capacity 320L/min and below, Small size magnetic drive pumps

Superior corrosion resistance
Manufactured mainly from superior corrosion-resistant CFRETFE/GFRPP/PVDF, the pumps in this series are exclusively designed to handle highly corrosive liquids. The spindle, bearing, and other sliding parts are SiC ceramics, allowing the pump to handle all type of chemicals including strong acids/alkalies and organic solvents.

Leakage-free, sealless structure
As is common with corrosion-resistant pumps, this series uses the magnetic drive method, eliminating problems caused by liquid leakage.

Capable of handling high specific gravity liquid
It is designed specifically to handle strong acids and other high specific gravity liquids. The pumps in this series use one of three standardized impellers according to the specific gravity of the liquid handled. As a result, this series greatly expands the range of liquids that can be handled.

SKM series magnetic pump specifications:

Model	Tube Connection		Thread Connection		Max Flow (L/min)	Max Head (m)	Standard		S. G	Motor
Model	Inlet(mm)	Outlet(mm)	Inlet(inch)	Outlet(mm)	50Hz/60Hz	50Hz/60Hz	Flow(L/min) 50Hz/60Hz	Head(m) 50Hz/60Hz		Power(w) 50Hz/60Hz	Phase
SKM-6R	14	14	-	-	8/9	1/1.4	2.8/5	0.8	< 1.2	3	1
SKM-6RZ	14	14	-	-	5.5/6	2.1/2.7	3.2/4.5	0.8	< 1.1	3	1
SKM-10R	14	14	-	-	11/12	1.5/2.1	5/8	1	< 1.1	6	1
SKM-10RN	14	14	-	-	11/12	1.5/2.1	5/8	1	< 1.1	6	1
SKM-15R	16	16	-	-	16/19	2.7/3.4	8/12	1.5	< 1.3	10	1
SKM-15RN	16	16	-	-	16/19	2.7/3.4	8/12	1.5	< 1.3	10	1
SKM-15RM	-	-	3/4	13	16/19	2.4/3.4	8/12	1.5	< 1.3	10	1
SKM-20R	18	18	-	-	27/32	3.1/4.3	17/22	2	< 1.2	20	1
SKM-20RM	-	-	3/4	16	27/32	3.1/4.3	17/22	2	< 1.2	20	1
SKM-20RX	26	26	-	-	46/52	1.8/2.5	30/40	1	< 1.3	20	1
SKM-20RXM	-	-	1	20	46/52	1.8/2.5	30/40	1	< 1.3	20	1
SKM-2RZ	18	18	-	-	10/11	4.6/6.9	7/10	4	< 1.1	20	1
SKM-20RZM	-	-	3/4	13	10/11	4.6/6.9	7/10	4	< 1.1	20	1
SKM-30R	20	20	-	-	33/38	3.8/5.4	16/25	2.5	< 1.3	45	1
SKM-30RM	-	-	3/4	16	33/38	3.8/5.4	16/25	2.5	< 1.3	45	1
SKM-30RX	26	26	-	-	62/72	2.9/4.1	32/46	2	< 1.1	45	1
SKM-30RXM	-	-	1	20	62/72	2.9/4.1	32/46	2	< 1.1	45	1
SKM-30RZ	18	18	-	-	15/17	8/11	10/14	6	< 1.1	45	1
SKM-30RZM	-	-	3/4	13	15/17	8/11	10/14	6	< 1.1	45	1
SKM-40R	20	20	-	-	45/52	4.6/6.5	22/34	4	< 1.1	65	1
SKM-40RM	-	-	3/4	16	45/52	4.6/6.5	22/34	4	< 1.1	65	1
SKM-40RX	26	26	-	-	75/85	3.3/4.7	47/65	2	< 1.1	65	1
SKM-40RXM	-	-	1	20	75/85	3.3/4.7	47/65	2	< 1.1	65	1
SKM-55R	26	26	-	-	60/70	5.6/8.2	30/45	4	< 1.2	90	1or3
SKM-55RM	-	-	1	20	60/70	5.6/8.2	30/45	4	< 1.2	90	1or3
SKM-55RZ	26	26	-	-	25/28	10/14	15/22	8	< 1.1	90	1or3
SKM-55RZM	-	-	1	20	25/28	10/14	15/22	8	< 1.1	90	1or3
SKM-70R	26	26	-	-	86/97	6.7/9.7	50/72	4	< 1.1	150/180	1or3
SKM-70RM	-	-	1	20	86/97	6.7/9.7	50/72	4	< 1.1	150/180	1or3
SKM-100R	26	26	-	-	120/130	8.6/11.6	60/70	7/9	< 1.3	250/265	1or3
SKM-100RM	-	-	1	20	120/130	8.6/11.6	60/70	7/9	< 1.3	250/265	1or3
SKM-100RX	-	-	1 1/4	32	170	9.0	100	5.0	< 1.3	250	1or3
SKM-120R	-	-	1 1/2	36	220	10.5	140	6.0	< 1.3	370	1or3
SKM-120RT	-	-	2 1/4	48	220	10.5	140	6.0	< 1.3	370	1or3
SKM-400CV5-D	-	-	1 1/2	36	260	12.5	150	8.5	< 1.3	370	3
SKM-401CV5-D	-	-	1 1/2	36	330	18	200	12	< 1.3	750	3
SKM-422CV5-D	-	-	2	1 1/2	300	21	200	18.5	< 1.3	1500	1or3
SKM-423CV5-D	-	-	2	1 1/2	360	22	300	20.5	< 1.3	2200	3

Magnetic Drive Pumps

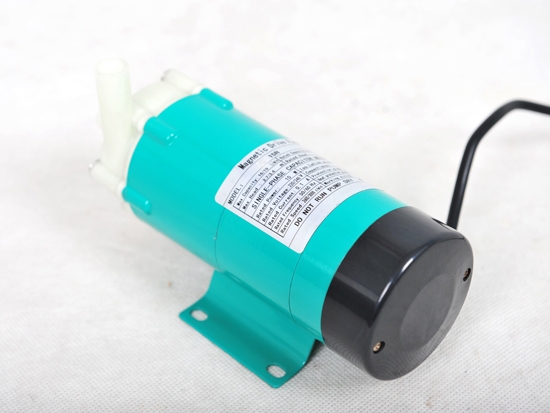

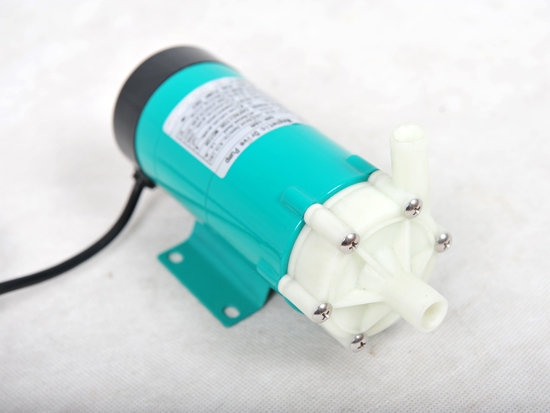

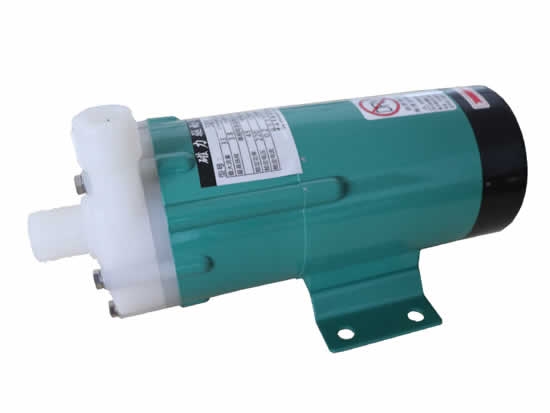

Highly reliable compact GFRPP magnetic drive pump
