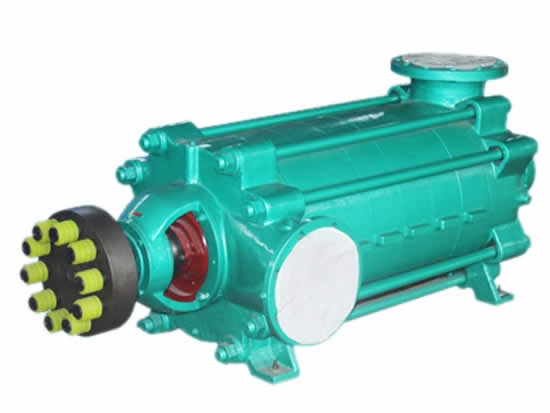

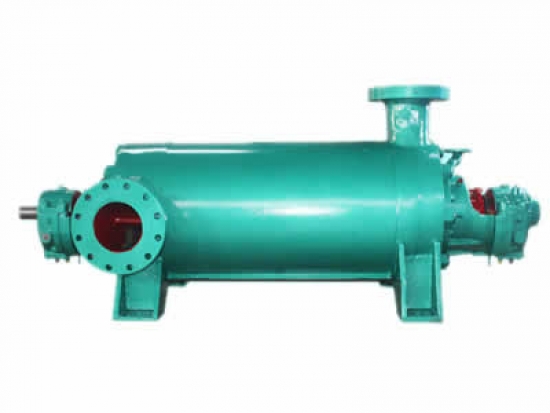

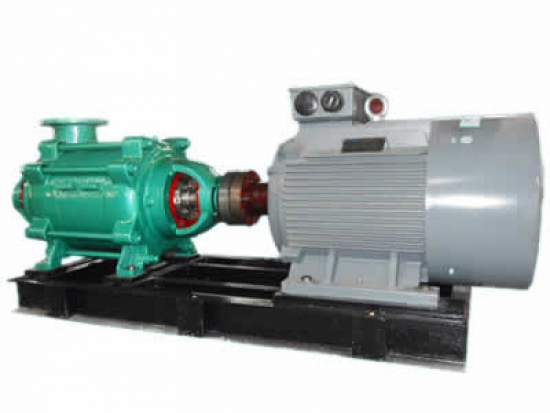

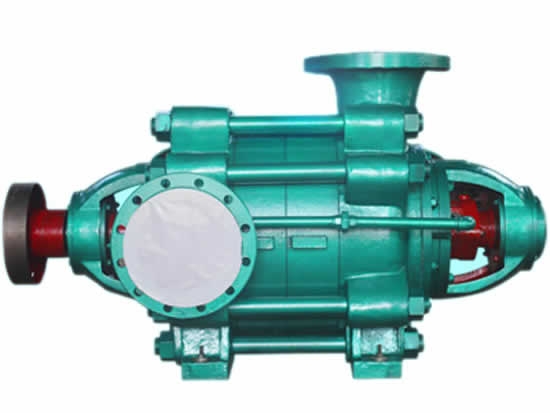

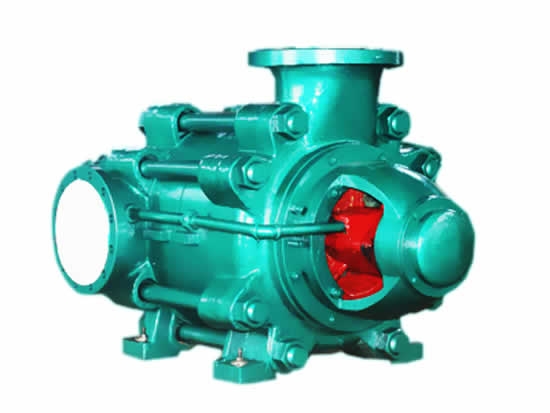

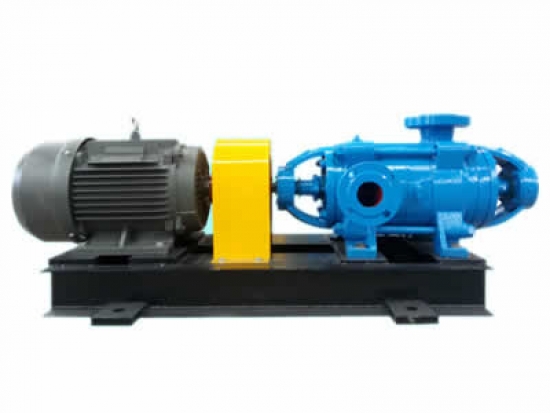

MD450-60*(2-10) wear-resistant mining multi-stage pump

Range of Inlet/Outlet Dia.: 2-12inch(50-300mm)
Range of Flow Rate:3.75- 850m3/h
Range of Head:19- 816m
Max. Pump Stage:14 stages
Range of Temperature Liquid:-20℃-150℃
Rotation Speed:1480/1750/2950/3500rpm
Seal Type: Mechanical seal or Packing seal
Multistage Pump Type: D / MD / DY / DF / DG series

Product Details

D / MD / DY / DF / DG series Horizontal multi-stage centrifugal pump is produced from national recommend hydraulic model, allowing our pump a high efficiency, energy saving, high adaptability, sound and stable operation, low noise, long service life, easy maintenance and so on.
D / MD / DY / DF / DG series Horizontal multi-stage centrifugal pump is quite suitable for the transportation of clear water (with zero solid particles or suspended substances), or other liquids with similar physical and chemical properties as those of pure water. Meanwhile, when changing pump’s material (or that of overflow parts), sealing method, and adding an extra cooling system, the centrifugal pump could also be used to transfer hot water, oils, as well as corrosive or impure liquids.

Horizontal Multistage Centrifugal Pump Technical Parameters:

Range of Inlet/Outlet Dia.	2-12inch(50-300mm)
Range of Flow Rate	3.75- 850m3/h
Range of Head	19- 816m
Max. Pump Stage	14 stages
Range of Temperature Liquid	-20℃-150℃
Rotation Speed	1480/1750/2950/3500rpm
Seal Type	Mechanical seal or Packing seal
Multistage Pump Type	D / MD / DY / DF / DG series

Horizontal Multistage Centrifugal Pump classification according to different applications:

Type	D series	MD series	DY series	DF series	DG series
Medium	Clean water	Sewage	Oil	Corrosive liquid	Hot water
Liquid Temperature	≤80℃	20℃-80℃	-20℃-105℃	-20℃-105℃	-20℃-150℃
Max. Particle Dia.	0	0.5mm	0	0	0
Viscosity	0	0	120cst	0	0
Suction/Discharge Direction
