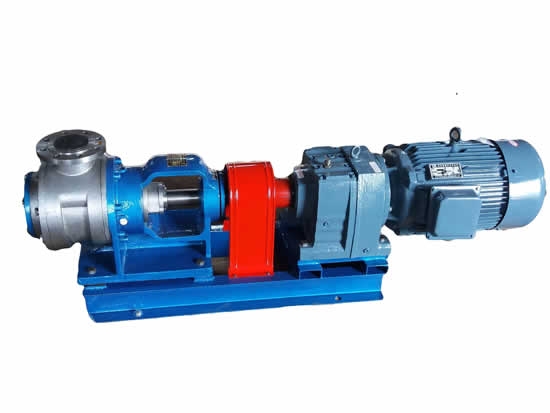

NYP high viscosity heat insulation rotor pump

Working principle: Internal gear
Discharge pressure:0.4-1.0Mpa
Caliber:1/2"-8"
Motor type: Gearbox reducer, Frequency, EX
Main application: Oil, heavy oil, resin, paint, polymer, honey, food oil(SS)
Customized service: Insulation jacket, variable speed, high temperature type

Categories:Bitumen pumps

Add To Basket Get A Quote

Product Details

NYP series of high viscosity gear pump is similar to US viking pump, it is stable, pulseless, with small vibration and low noise. It also has a good self-priming ability, which is able to transfer high viscosity resin, polyurethane, poly-aether, polyethylene or some-thing similar. And there’s double jacket type, pump can get heated by heat steam, thermal oil,electrical heating.

Working principle: Internal gear
Pump body material: Cast iron, ductile iron,carbon steel,stainless steel 304 or 316
Viscosity range:1-300000 cst
Max. medium temperature: 10- 250℃
Max. suction:4m
Flow rate:5-5000L/min
Discharge pressure:0.4-1.0Mpa
Caliber:1/2"-8"
Caliber connection type:Thread, flange
Motor power:0.55-75kw
Motor specification:220-440V, 3phase, 50/60Hz, etc
Motor type: Gearbox reducer, Frequency, EX
Main application: Oil, heavy oil, resin, paint, polymer, honey, food oil(SS)
Customized service: Insulation jacket, variable speed, high temperature type.

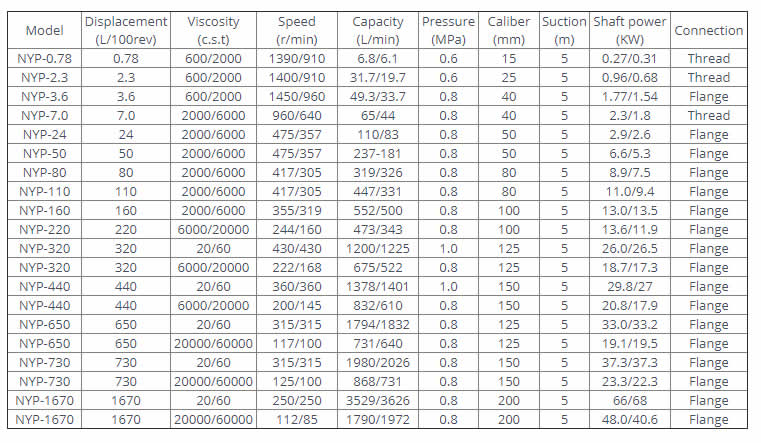

NYP high viscosity heat insulation rotor pump data table：
