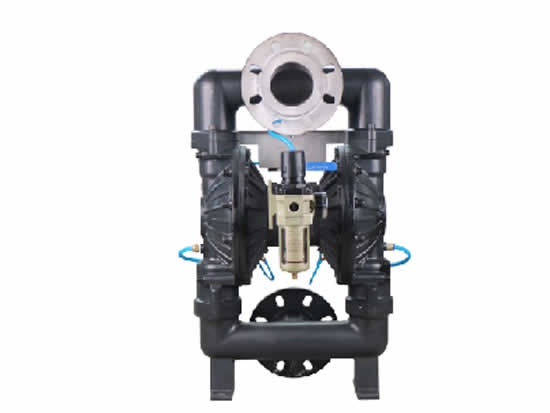

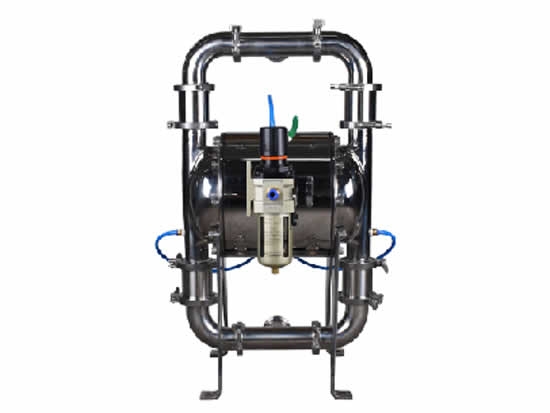

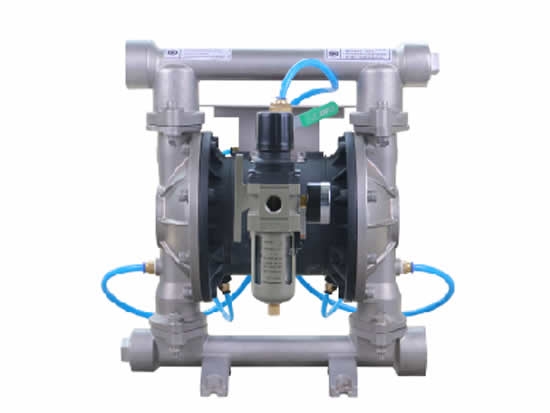

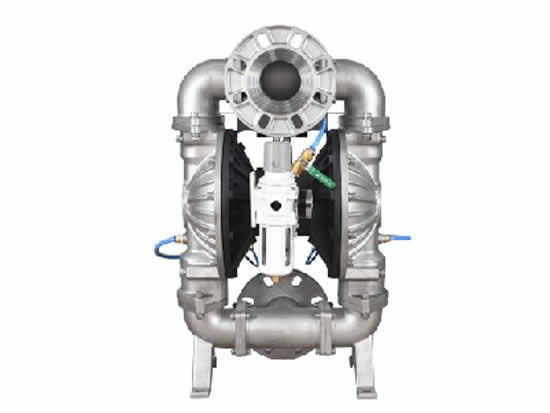

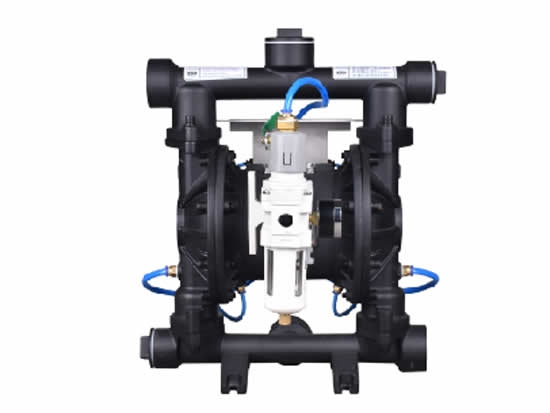

Powder Pump Air Driven Double Diaphragm Pump For Powder Transfer

Usage: Air Pump, Power:Air
Pressure: 7bar, Fuel:Compressed Air
Application: Universal , Structure: Diaphragm Pump
Theory: Air Powered Double Diaphragm Pump, Standard Or Nonstandard: Standard
Product Name: AODD PUMP Material: Aluminum
Warranty: 1 Year Warranty(except Wearing Parts), Max Pressure: 7bar
Type: Diaphram Air Pump, Max Flow: 600L/min
Feature: Long Life, Dimensions(mm): 57*42*93CM
Weight(lb): 43.1 , Air Inler Size: 3/4"NPT
Wetted End: Cast Iron/Aluminum/ Stainless Steel

Products

Product Details
Air Operated Double Diaphragm Pump,air operated diaphragm pumps, double diaphragm pumps
air diaphragm pumps, diaphragm electric pumps, dual diaphragm pumps

Products Cases:
AODD Pump can handle all types of liquids, whenever you need to transfer the liquid, you can consider to use AODD Pump, our pumps enjoy a high reputation in industries such as Chemical& Refineries, Waste Water Treatment, Food& Beverages, Paints& Coating, Pharmaceutical, Steelworks& Foundries, Cosmetics& Cleaning, Semiconductor& Electronics, Textile& Tanning, Galvanic, Pulp& Paper, Constructions& Mining, Energy& Power Plant, Automotive etc.

Pneumatic diaphragm pump is driven by compressed air, through the main air valve, air channel reversing valve and other mechanisms so that the compressed air to drive the flexible diaphragm reciprocating movement of the pump chamber to form a pressure difference in the chamber, and through the pump four one-way ball valve to control the flow, so as to achieve the function of suction and discharge medium.

Parts that fit AODD Pumps:
Air Section Repair Kits
1/2" Pump Kit
1", 1-1/2", 2" Pump Kit
2" & 3" Model Pump Kits
Balls
Diaphragms
Fluid Section Repair Kits
1/2" Pumps
1" for Non-Metallic Pumps
1" for Metallic Pumps
1 1/2" & 2" for Non-Metallic Pumps
1 1/2" & 2" for Metallic Pumps
2" for Metallic Pumps
3" for Metallic Pumps
Gaskets
Hardware
Grease Kits
O-Rings & Retaining Rings
Pistons
Rods / Shafts
Seats
U-Cups
Valve Inserts
Valve Plates

AODD Pump data sheet:
MODEL
Max. Flow
(LPM)
Max. Head
(m)
Max. Lift height
(m)
outlet pressure
(kg)
size
 (mm)
lnlet calibar
(inch)
particle size
 (mm)
SKQ-10 18.9 70 3 7 10 1/4 1.5
SKQ-15 18.9 70 3 7 15 1/4 1.5
SKQ-20 57 70 4.5 7 20 1/4 2.5
SKQ-25 57 70 4.5 7 25 1/4 2.5
SKQ25A 116 84 5.4 8.4 25 1/2 3.2
SKQ-32 151 84 5.4 8.4 32 1/2 3.2
SKQ-40 151 84 5.4 8.4 40 1/2 3.2
SKQ-50 378.5 84 5.4 8.4 50 1/2 4.8
SKQ-65 378.5 84 5.4 8.4 65 1/2 4.8
SKQ-80 568 84 5.4 8.4 80 1/2 6.4
SKQ-100 568 84 5.4 8.4 100 1/2 6.4
SKQ-125 1041 84 7.6 8.4 125 3/4 10
