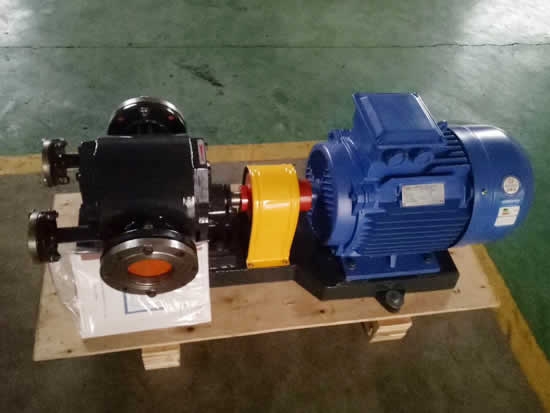

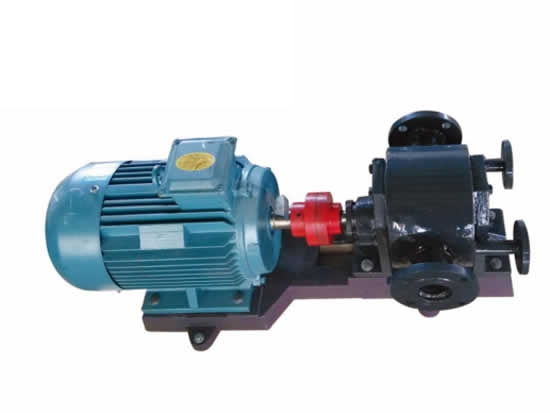

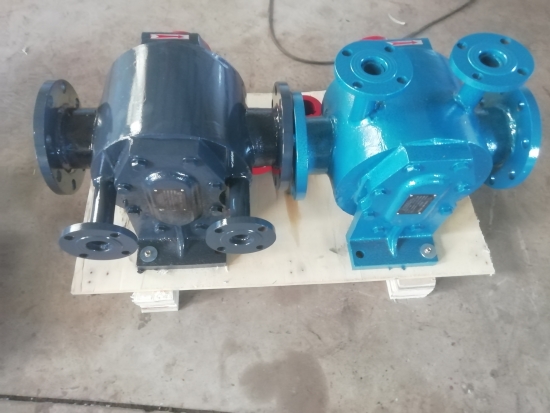

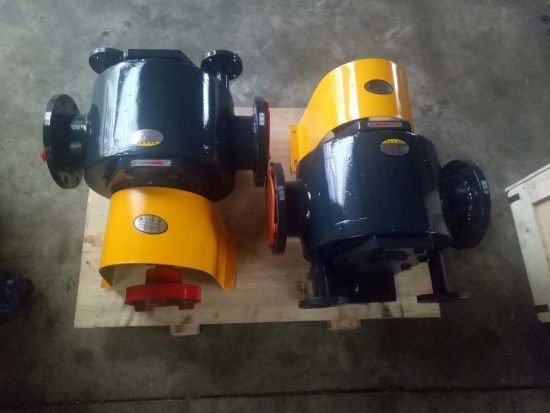

HL bitumen transfer jacketed gear pump

HL bitumen transfer jacketed gear pump

The material of jacketed gear pump housing is carbon steel / stainless steel. And the gears, axles and bushing adopt alloy steel. It applies to deliver non-corrosive heavy oil
and bitumen without solid particles at temperature within 400 ℃.
The Pump and the liquid could be heated, preserved heat and cooled with conduction oil, steam, hot-water, cold water or other mediums.
Pump may be equipped with gear box reducer for high viscosity liquid more than 1500c.s.t.

Data table:

Model	Flow m³/h	Pressure (Mpa)	Suction (m)	SIZE (mm)	motor power （kw）
HL2-0.6	2	0.6	3	DN25	1.5-6
HL3-0.6	3	0.6	3	DN25	2.2-4
HL4-0.6	4	0.6	3	DN40	2.2-6
HL6-0.6	6	0.6	3	DN40	4-4
HL8-0.6	8	0.6	3	DN50	5.5-6
HL12-0.6	12	0.6	3	DN50	7.5-4
HL18-0.6	18	0.6	3	DN80	7.5-6
HL29-0.6	29	0.6	3	DN80	11-4
HL38-0.6	38	0.6	3	DN100	15-6
HL58-0.6	58	0.6	3	DN100	22-4
HL72-0.6	72	0.6	3	DN150	37-8
HL95-0.6	95	0.6	3	DN150	45-6
HL108-0.6	108	0.6	3	DN200	55-8
HL150-0.6	150	0.6	3	DN200	75-6
